User Experience Design

Actors & User Stories

Employee of a Data Labeling Company

User Story 1

As an employee of a data labeling company, I want to create and manage multiple annotation projects simultaneously, so that I can efficiently coordinate the labeling efforts of our team across different clients.

Acceptance Criteria:

The user can create a new annotation project.
The user can easily switch between existing annotation projects.
Each project allows the definition of unique data categories and attributes.

User Story 2
As an employee of a data labeling company, I need the ability to easily switch between manual annotation and the ML model prediction correction mode, ensuring flexibility in our labeling workflows.

Acceptance Criteria:

The user can seamlessly switch between manual annotation and ML model prediction correction modes.
Changes made in one mode are reflected in the other to ensure consistency.
The transition between modes is intuitive and requires minimal effort.

User Story 3
As an employee of a data labeling company, I want to be able to download annotated data in a standardized format, allowing seamless integration with our clients’ machine learning pipelines.

Acceptance Criteria:

The user can download annotated data in a standardized format (e.g., JSON).
The downloaded data includes all relevant annotations and metadata.
The downloaded data is compatible with common machine learning frameworks.

Academic Researcher Creating Specialized Dataset

User Story 1

As an academic researcher, I want to define custom data categories and attributes specific to my research, ensuring that the dataset aligns with the objectives of my academic study.

Acceptance Criteria:

The user can define custom data categories and attributes for their dataset.
The system validates the uniqueness and appropriateness of the defined categories.
Custom categories are accurately reflected in the annotation interface.

User Story 2
As an academic researcher, I need the ability to version my datasets, enabling me to track changes and improvements over time as my research progresses.

Acceptance Criteria:

The user can create multiple versions of a dataset.
Each version retains a snapshot of the dataset, including annotations and metadata.
The user can easily switch between different versions for analysis and comparison.

User Story 3
As an academic researcher, I want the option to share my labeled dataset with collaborators, making it easy to collaborate and receive feedback.

Acceptance Criteria:

The user can export the dataset along with annotations in a portable format.
The exported dataset retains all relevant metadata and annotations.
Collaborators can receive the exported dataset and integrate it into their own workflows for collaborative research.

ML Engineer Preparing Data for Modeling

User Story 1

As an ML engineer, I want to choose from a variety of pre-trained model architectures, allowing me to quickly experiment with different approaches for my computer vision tasks.

Acceptance Criteria:

The user can select from a variety of pre-trained model architectures.
Each model architecture provides relevant details, such as input requirements and supported tasks.
The selected model architecture can be seamlessly integrated into the annotation and training workflow.

User Story 2
As an ML engineer, I need a clear and intuitive interface to review and analyze the predictions made by the model, enabling me to identify areas for manual correction and improvement.

Acceptance Criteria:

The user can review model predictions for annotated data.
Predictions include bounding boxes or labels for identified objects.
The interface allows the user to easily navigate between annotated samples and associated predictions.

User Story 3
As an ML engineer, I want the option to save and download my trained models along with associated hyperparameters, streamlining the deployment process and ensuring reproducibility.

Acceptance Criteria:

The user can save trained models along with associated hyperparameters.
Downloaded models are compatible with common machine learning frameworks.
The saved models can be easily integrated into deployment pipelines for further use.

Use Cases

Use Case 1: Create Annotation Project

Brief Description:

This use case involves the user creating a new annotation project, defining data categories, and efficiently managing multiple projects simultaneously for different clients.

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system.

Basic Flow:

User accesses the dashboard.
User clicks “Create new project” button
The “Project Creation Pop-up” shows up
User has to input: Project Name, Description, Dataset URL
User clicks “Create Project”
If all the data was inputted correctly project is created and user receives notification that the “Project was created successfully”
Page get’s refreshed, and the project overview pop-up shows up

Alternate Flows:

In point 6: If the data was invalid the user gets taken back to the point 4 - he needs to fix invalid data

Exceptions:

In point 5: User decides not to create the project - he clicks the cancel button
In point 5: User decides not to create the project - he closes the whole page

Success Conditions:

A new annotation project is created and user can access it and work on it from now on.

Failure Conditions:

A new annotation project is not created

Views:

Dashboard, Project Creation Pop-Up, Project Overview Pop-up

Use Case 2: Modify Annotation Project

Brief Description:

This use case involves the user modifying the previously created project - including changing its properties.

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, he has at least one created project.

Basic Flow:

User accesses the dashboard.
User clicks on existing project
The “Project Overview Pop-up” shows up
User can click on any of the properties: name, description, dataset URL and modify them
After user made the changes, he clicks the “Modify” button
If all the changes were possible project is modify and user receives notification that the “Project was modified successfully”
User stays in the Pop-up window

Alternate Flows:

In point 5: If the input was invalid changes are not saved, user gets notification and has to fix the issues, then he can return to point 5

Exceptions:

In point 4: User decides not to modify the project - he clicks the cancel button, or he closes the whole page

Success Conditions:

Existing annotation project is modified, requested changes are saved in the database

Failure Conditions:

Existing annotation project is not modified

Views:

Dashboard, Project Overview Pop-up

Use Case 3: Delete Annotation Project

Brief Description:

This use case involves the user deleting an existing annotation project

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, he has at least one created project.

Basic Flow:

User accesses the dashboard.
User clicks on existing project
The “Project Overview Pop-up” shows up
User clicks on the “Delete Project” button
User needs to confirm it by typing “delete”
If the confirmation was successful project is deleted, user receives notification that the “Project was deleted successfully”
Page gets refreshed, and user is taken to the dashboard

Alternate Flows:

If the confirmation was not successful in the first try, user can try until he succeeds

Exceptions:

In point 5: User does not confirm the deletion process

Success Conditions:

Existing project is deleted

Failure Conditions:

The project is not deleted

Views:

Dashboard, Project Overview Pop-up

Use Case 4: Train ML Model

Brief Description:

This use case involves the user training ML model of his choice with a given training dataset

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, he has an already created project, he has manually annotated training set

Basic Flow:

User accesses the ML models list.
User chooses the ML model
The “ML Model Overview Pop-up” shows up
User loads a .JSON file with training set annotations
User clicks the “Train Model” button
If all the data input was correct the training process will start, once it’s finished user gets a proper notification
The “Training results Pop-up” is shown, where user can save the model, and check its quality measures

Alternate Flows:

Before point 5: User can adjust the model hyperparameters (check use case 5)
In point 6: Input was incorrect - user has to fix the issues first - then he can continue the training

Exceptions:

In point 6: User decides not to train the model - closes the pop-up
In point 6: User can’t provide valid input - the training can’t be started
In point 7: Quality measures weren’t satisfying - user doesn’t save the model

Success Conditions:

ML Model is trained and saved by the user

Failure Conditions:

ML Model’s training was not done

Views:

ML Models List, ML Model Overview Pop-up, Training results Pop-up

Use Case 5: Adjust ML Model

Brief Description:

This use case involves the user adjusting hyperparameters of the ML Model

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, he has an already created project, user have chosen the ML model and opened its Overview Pop-up

Basic Flow:

User clicks the “Adjust Hiperparameters” button
The field for hyperparameters configuration shows up
User inputs hyperparameters configuration code
User clicks “Save Configuration” button
If all the data was inputted correctly, configuration is saved and user receives notification: “Configuration saved”
User can start training now

Alternate Flows:

In point 5: If the data was invalid the user has to fix the configuration before saving it

Exceptions:

In point 4: User decides to stop - closes the pop-up
In point 4: User couldn’t input valid configuration

Success Conditions:

New ML Model configuration is saved

Failure Conditions:

ML Model configuration stays the same as it was before

Views:

ML Models List, ML Model Overview Pop-up

Use Case 6: Manually annotate dataset

Brief Description:

This use case involves the user manually annotating part of the dataset

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, user has already created project

Basic Flow:

User accesses the Label Studio Frontend module
User manually annotates the dataset in LSF
User downloads the .JSON file generated by LSF

Alternate Flows:

User could potentially use any other offshore annotating tool that would generate right .JSON file

Exceptions:

The exceptions handling is covered by LSF, we only provide it as an integrated module

Success Conditions:

User successfully creates .JSON with annotations

Failure Conditions:

User couldn’t create the .JSON file

Views:

Label Studio Frontend

Use Case 7: Predict labels for the dataset

Brief Description:

This use case involves the user generating the predicted annotations for the dataset, with the usage of the ML Model

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, user has created annotation project, user has trained the ML model

Basic Flow:

User accesses the ML Models List
User chooses the ML Model
User clicks “Predict Labels” button
If the action was viable the ML model starts predictions and user receives a notification “Predictions has started”
When the predictions are completed user receives a notification and the .JSON file gets generated
User can download the predictions by clicking “Download” button

Alternate Flows:

There isn’t any, user has to follow basic flow

Exceptions:

ML Model couldn’t generate the predictions due to an error

Success Conditions:

Predictions were generated into a .JSON file, user downloaded it

Failure Conditions:

The predictions weren’t generated, or user couldn’t download the file

Views:

ML Models List

Use Case 8: Adjust annotations dataset

Brief Description:

This use case involves the user manually adjusting the annotations generated by the ML model annotation project

Actors:

Employee of a Data Labeling Company, Academic Researcher Creating Specialized Dataset, ML Engineer Preparing Data for Modeling

Preconditions:

The user is logged into the ML-assisted labeling system, user has created annotation project, user generated the predictions of the label and has the .JSON file

Basic Flow:

User accesses the Label Studio Frontend
User uploads the .JSON file
User manually adjusts the labels
User downloads the corrected dataset labels as a .JSON file

Alternate Flows:

User could potentially use any other offshore annotating tool that would generate right .JSON file

Exceptions:

The exceptions handling is covered by LSF, we only provide it as an integrated module

Success Conditions:

User downloads the .JSON file with corrected labels

Failure Conditions:

User doesn’t the file with corrected labels

Views:

Label Studio Frontend

Objects coverage by the use cases

Object / Use Case	log in	create project	modify project	delete project	save project	annotate manually	conf. ML model	train ML model	predict labels	correct annotations
backend	x	x	x	x			x
Label Studio	x					x				x
ML module								x	x
Database					x

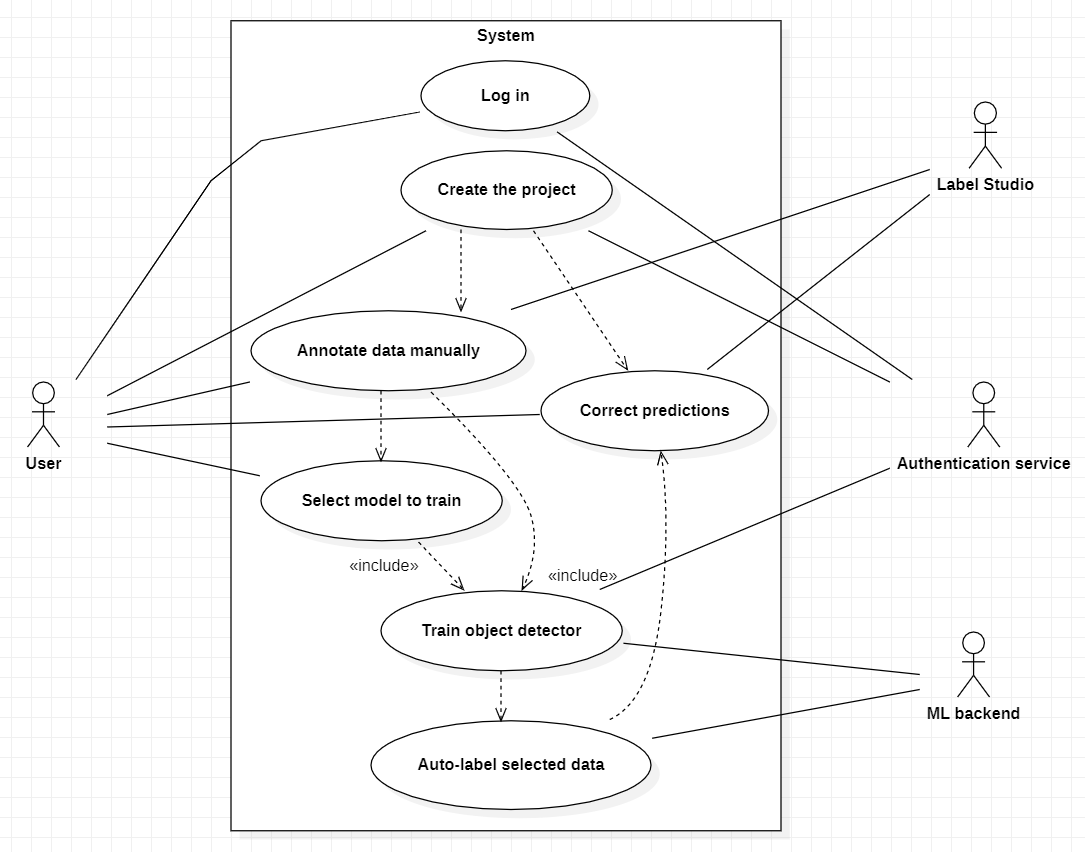

Use case diagram:

Screens / Views

Login
Dashboard, contains:

Header Navigation Bar

Overview of all projects. (Project List View)

Quick access to create a new project or continue existing ones.

Basic indicators for each listed project.

Create New Project Pop-up:

Form to define project details (name, description, etc.).

Field to input link to dataset

Project creation and cancel buttons

Project Overview Pop-up:

Change name/description

Go to Model List View

Go to Label Studio

Annotation Interface (Label Studio)
ML Models List

Display Current Project Name

List of available pre-trained model architectures.

Select From Models List

ML Model Overview Pop-up

Model details

Field for configuration code

Configure hyperparameters button

Upload training dataset

“Train Model” button

Training Results Pop-up:

Quality measurements

“Save model” button

“Close” button

‘Adjust Model” button

Activity Diagrams

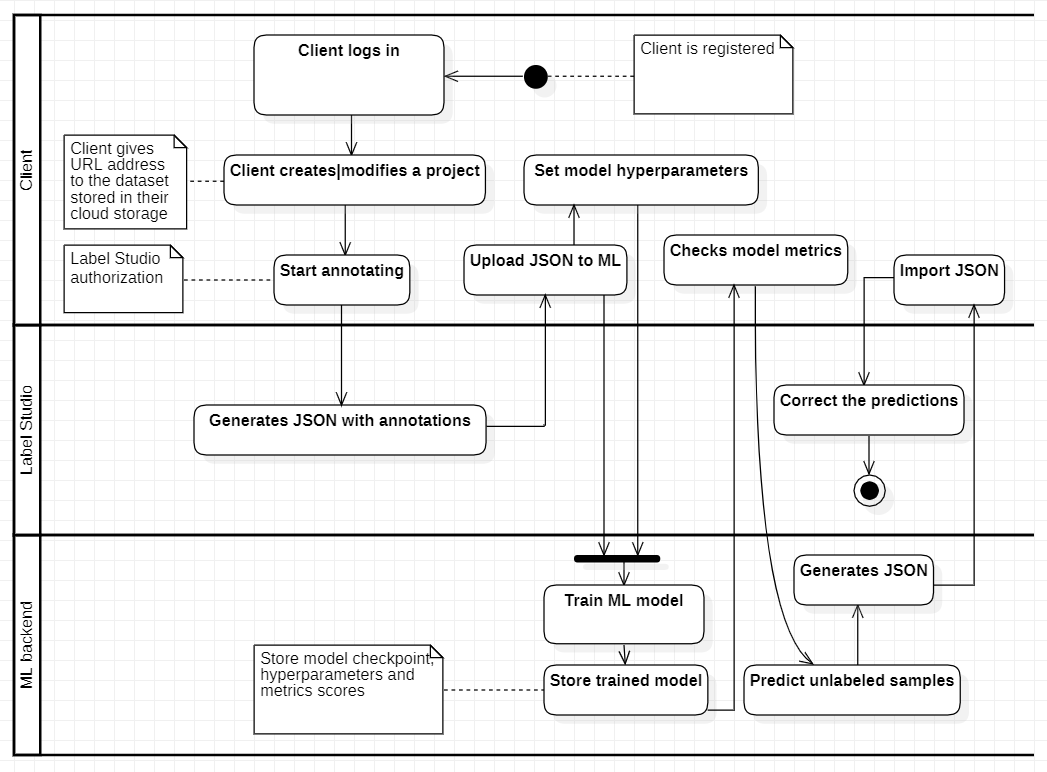

Activity diagram for usage of new ML model:

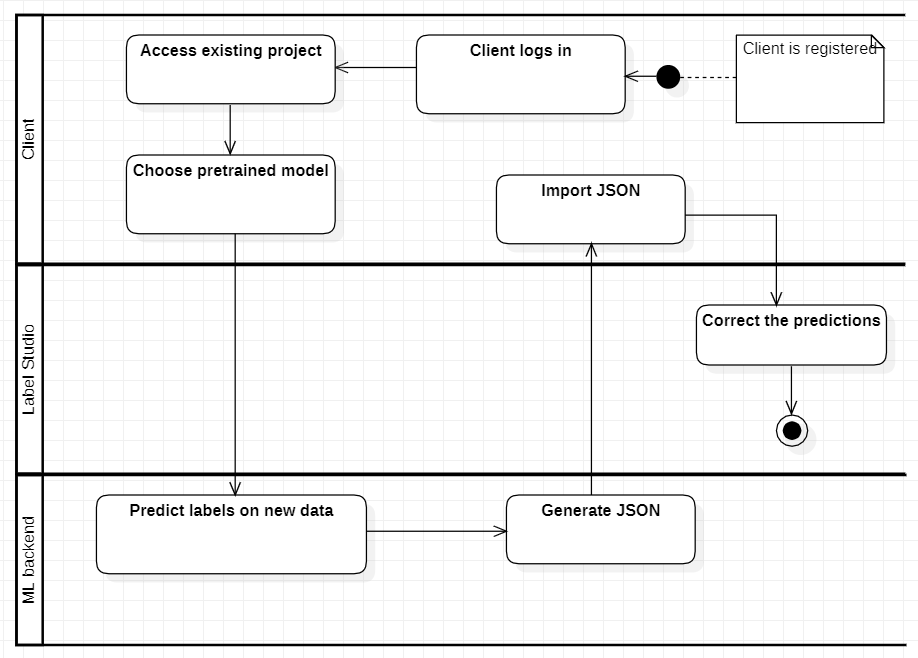

Activity diagram for usage of existing pretrained ML model for new data in dataset (existing projects):
